Acupro-III biology energy quantum meter - theory and design

Biological energy quantum meterPrinciple of design

When the human body skin accepts low DC voltage E inducts, immediately has the electric conduction and the polarized response.Specially on the channels and collaterals system, the electron through the acupuncture point, the channels and collaterals, the internal organs to another electrode which is grasped by the measuring hand, experiences many collisions.Contacts the acupuncture point from the test hole pen to the electric current stable transition process in, human body resistance function r(t) changes along with time t, but while electric conduction, in the human body also carries on the polarized arrangement, in human body each kind is having already the electricity moment of couple which polarizes and may be induced, under the external voltage E (1.25v) function, can have the damped oscillation (Over damped oscillator) to arrange, causes between two electrodes to appear with external voltage E reverse induction potential difference V(t).The human body in order to resist the polarization, the correlation cell can produce life potential L(t) (resistance polarization life instinct).R is measuring appliance in supposes the resistance, is approximately 100 kΩ, I(t) is the class after the human body electric current.

Is as follows by the formula expression:

I(t)=[E+L(t)-V(t)]/[R+r(t)]

The healthy person, when contacts the acupuncture point stably from the test hole pen to the electric current, the measuring appliance demonstrated I(t) cannot change, because his life potential L(t) quite is strong; Ill health person, because life potential L(t) quite is weak, therefore I(t2) < I(t1) i.e. t2 > t1, also is produces along with the time variation falls the value.

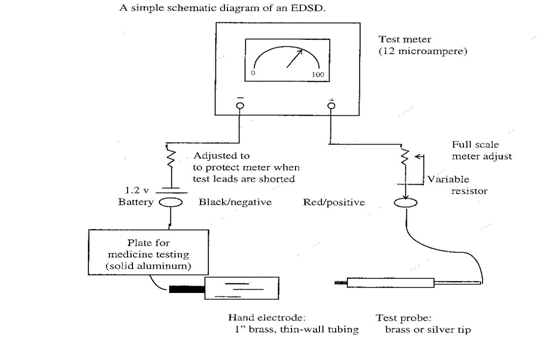

Simple circuit diagram:

Biological energy quantum meterData material

Metering equipment (Device):
1. ohmmeters (ampere meter) Ohm-meter
2. voltage 1-1.25 volts, 10-12 micro ampere direct current Volts: 1-1.25V,10-12 microamperes DC
3. scale division 0-100 unit Scale of Meter 0-100

Observed value (Reading):
1. readings 50: The resistance is 100 kilo-ohms
2. readings 0: The resistance (does not have electric conductivity) for the infinitely great
3. readings 100: The resistance is the infinitesimal (non-resistance)
